Screw Water Cooling Chiller For Concrete Mixing Industrial Chiller
Features
1. Our compressor is imported from Italy,France and so on, being of high-quality built-in safe protection, with low noise, the electricity of province is durable.
2. Cooling capacity range: 113.8kw~1700kw
3. Normal conditions: Chilled water inlet temperature is 12 degree, outlet temperature is 7 degrees. Cooling water inlet temperature is 30 degrees, outlet temperature is 35 degrees. But the lowest temperature can be -25 degress.
4. Stardard Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%,Can also be customized according to customers’request
5. The quantity of compressor can be one or two ,each compressor is independent refrigeration system. Each other run independently.when the one is working ,the other can be working or not.
6. Use PLC microcomputer control from Germany Siemens LCD touch screen, both English and Chinese human-machine interface.
7. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.
8.Our standard refrigerant is R22, but you can choose to use environmental refrigerant such as R407C , R134A or R507.
Technical Specification:
| Model | MG-160WD |
| Nominal cooling capacity | kcal/h | 460100 |
| kw | 535 |
| Input power | kw | 102.5 |
| Chilled fluid flow | M3/h | 92 |
| Cooling water flow | M3/h | 109 |
| Power supply | 3PH-380V-50HZ |
| Refrigeration oil | Type | | SUNISO 4GS |
| Charge | L | 12*2 |
| Refrigerant | Type | | R22/R134a/407c |
| Charge | Kg | 40*2 |
| Type of control | | Thermostatic expansion valve |
| Compressor | Type | | Semi-hermetic screw |
| Quantity | | 2 sets |
| start-up mode | | Y-delta |
| power | Kw | 56*2 |
| Capacity control | % | 0~100( 8 level Capacity control) |
| Evaporator | type | | Shell and tube |
| Inlet and outlet pipe diameter | inch | PT5" |
| Condenser | Type | | Shell and tube |
| Inlet and outlet pipe diameter | inch | PT4"*2 |
| Dimension | Length | mm | 3200 |
| Width | mm | 1200 |
| Height | mm | 1760 |
| Net weight | Kg | 3050 |
Customer site:
Payment term:
T/T: 50% Down payment, the balance before shipment, or you also can show us if any special required.
L/C,D/P,DDU and etc.
Contact preson:Grace Zhang
Cell:+8618615626360 (calling,whatspp,viber,weichat)
Email:cnmgchiller@gmail.com
Skype:mb.gracezhang
Chemical water chiller website:www.mgchiller.com
Baler website: www.hellobaler.com
Looking forward long and good cooperation from all over the world! MGREENBELT will give our agent price and good service.
|
|

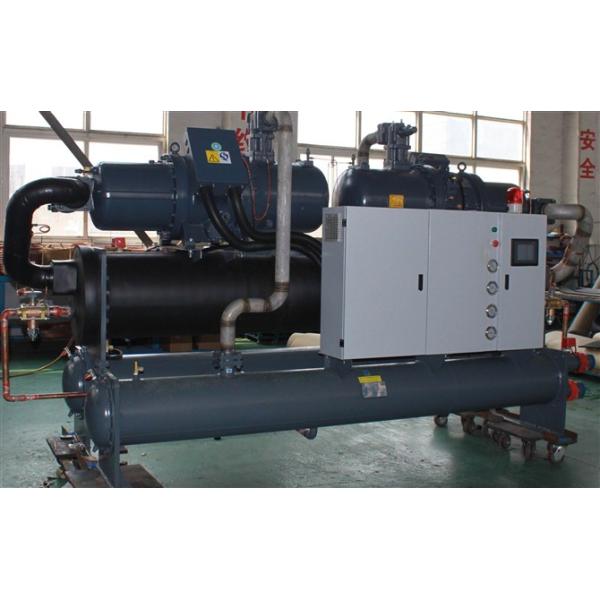

Screw Water Cooling Chiller For Concrete Mixing Industrial Chiller Images
|
